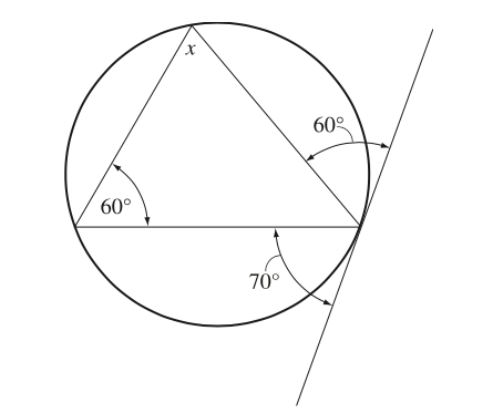

1. The measure of x in the diagram above is

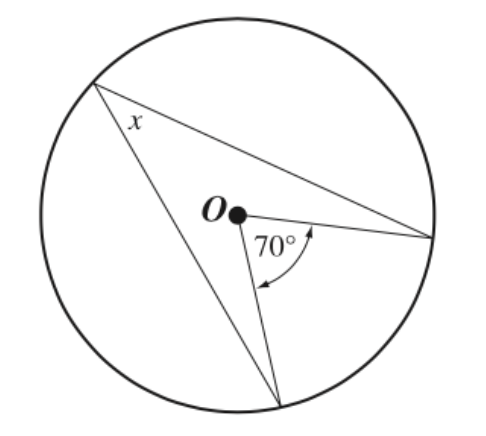

2.If O is the center of the circle the measure of x is _____ degrees

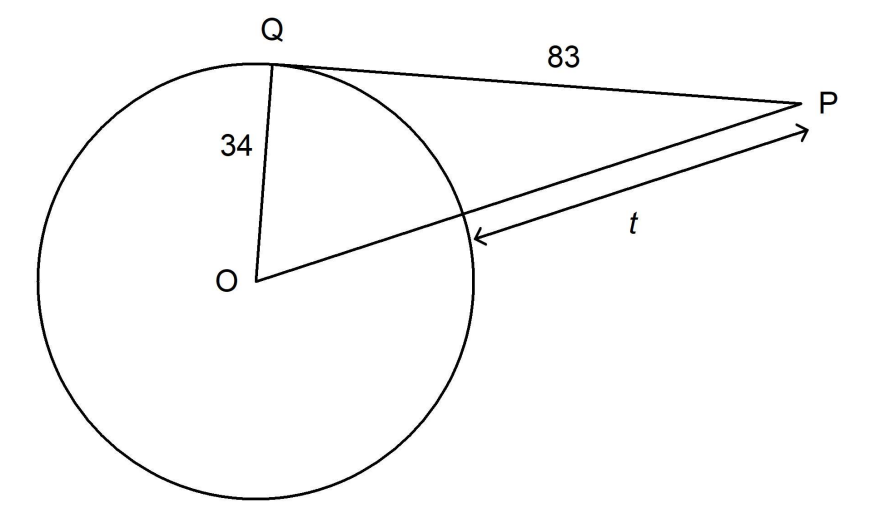

3.O is the centre of this circle and point Q is a point of tangency. Determine the value of t.

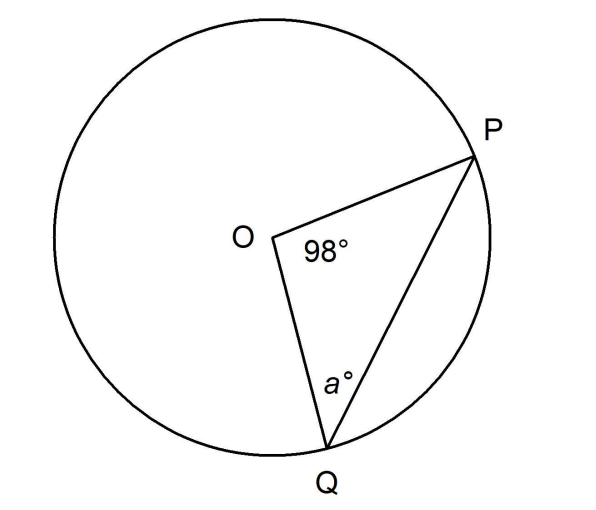

4. O is the centre of the circle. Determine the value of a°.

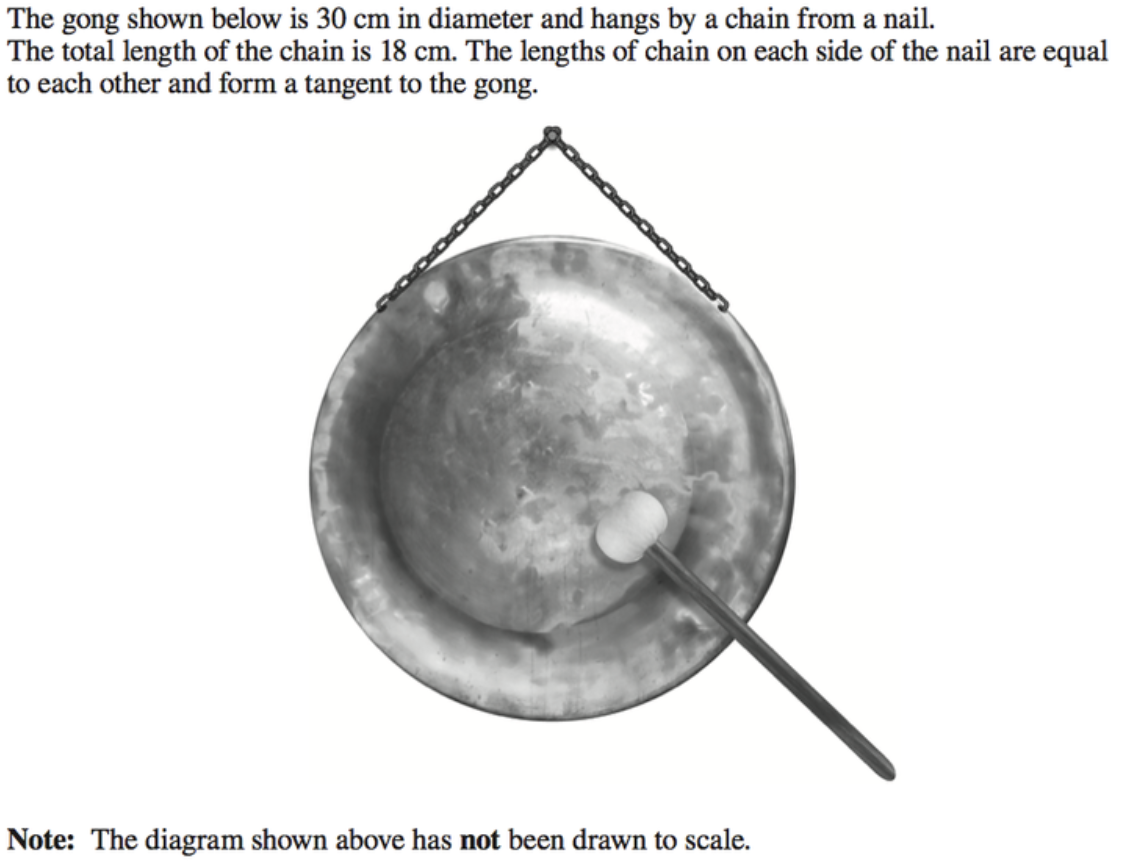

5. How far above the top of the gong is the nail?

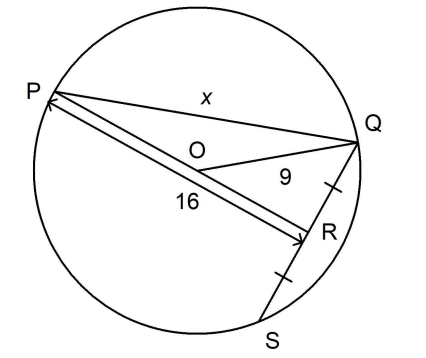

6. O is the centre of the circle. Determine the value of x to the nearest tenth, if necessary.

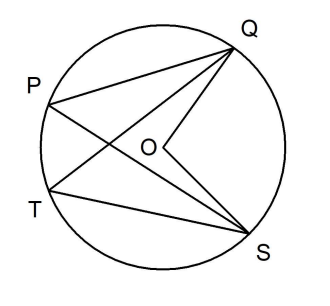

7. O is the centre of this circle. Identify all the inscribed angles subtended by the minor arc QS.

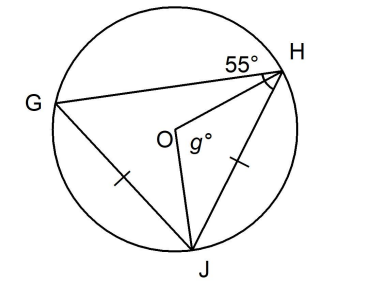

8. O is the centre of this circle. Determine the value of g°.
